Typical slot allocation scenarios
3 queues with SLOT_SHARE 50%, 30%, 20%, with 15 job slots
This scenario has three phases:
All three queues have jobs running, and LSF assigns the number of slots to queues as expected: 8, 5, 2. Though queue Genova deserves 3 slots, the total slot assignment must be 15, so Genova is allocated only 2 slots:
bqueues QUEUE_NAME PRIO STATUS MAX JL/U JL/P JL/H NJOBS PEND RUN SUSP Roma 50 Open:Active - - - - 1000 992 8 0 Verona 48 Open:Active - - - - 995 990 5 0 Genova 48 Open:Active - - - - 996 994 2 0When queue Verona has done its work, queues Roma and Genova get their respective shares of 8 and 3. This leaves 4 slots to be redistributed to queues according to their shares: 50% (2 slots) to Roma, 20% (1 slot) to Genova. The one remaining slot is assigned to queue Roma again:
bqueues QUEUE_NAME PRIO STATUS MAX JL/U JL/P JL/H NJOBS PEND RUN SUSP Roma 50 Open:Active - - - - 231 221 11 0 Verona 48 Open:Active - - - - 0 0 0 0 Genova 48 Open:Active - - - - 496 491 4 0When queues Roma and Verona have no more work to do, Genova can use all the available slots in the cluster:
bqueues QUEUE_NAME PRIO STATUS MAX JL/U JL/P JL/H NJOBS PEND RUN SUSP Roma 50 Open:Active - - - - 0 0 0 0 Verona 48 Open:Active - - - - 0 0 0 0 Genova 48 Open:Active - - - - 475 460 15 0
2 pools, 30 job slots, and 2 queues out of any pool
poolA uses 15 slots and contains queues Roma (50% share, 8 slots), Verona (30% share, 5 slots), and Genova (20% share, 2 remaining slots to total 15).
poolB with 15 slots containing queues Pisa (30% share, 5 slots), Venezia (30% share, 5 slots), and Bologna (30% share, 5 slots).
Two other queues Milano and Parma do not belong to any pool, but they can use the hosts of poolB. The queues from Milano to Bologna all have the same priority.
The queues Milano and Parma run very short jobs that get submitted periodically in bursts. When no jobs are running in them, the distribution of jobs looks like this:
QUEUE_NAME PRIO STATUS MAX JL/U JL/P JL/H NJOBS PEND RUN SUSP
Roma 50 Open:Active - - - - 1000 992 8 0
Verona 48 Open:Active - - - - 1000 995 5 0
Genova 48 Open:Active - - - - 1000 998 2 0
Pisa 44 Open:Active - - - - 1000 995 5 0
Milano 43 Open:Active - - - - 2 2 0 0
Parma 43 Open:Active - - - - 2 2 0 0
Venezia 43 Open:Active - - - - 1000 995 5 0
Bologna 43 Open:Active - - - - 1000 995 5 0
When Milano and Parma have jobs, their higher priority reduces the share of slots free and in use by Venezia and Bologna:
QUEUE_NAME PRIO STATUS MAX JL/U JL/P JL/H NJOBS PEND RUN SUSP
Roma 50 Open:Active - - - - 992 984 8 0
Verona 48 Open:Active - - - - 993 990 3 0
Genova 48 Open:Active - - - - 996 994 2 0
Pisa 44 Open:Active - - - - 995 990 5 0
Milano 43 Open:Active - - - - 10 7 3 0
Parma 43 Open:Active - - - - 11 8 3 0
Venezia 43 Open:Active - - - - 995 995 2 0
Bologna 43 Open:Active - - - - 995 995 2 0
Round-robin slot distribution: 13 queues and 2 pools
Pool poolA has 3 hosts each with 7 slots for a total of 21 slots to be shared. The first 3 queues are part of the pool poolA sharing the CPUs with proportions 50% (11 slots), 30% (7 slots) and 20% (3 remaining slots to total 21 slots).
The other 10 queues belong to pool poolB, which has 3 hosts each with 7 slots for a total of 21 slots to be shared. Each queue has 10% of the pool (3 slots).
The initial slot distribution looks like this:
bqueues
QUEUE_NAME PRIO STATUS MAX JL/U JL/P JL/H NJOBS PEND RUN SUSP
Roma 50 Open:Active - - - - 15 6 11 0
Verona 48 Open:Active - - - - 25 18 7 0
Genova 47 Open:Active - - - - 460 455 3 0
Pisa 44 Open:Active - - - - 264 261 3 0
Milano 43 Open:Active - - - - 262 259 3 0
Parma 42 Open:Active - - - - 260 257 3 0
Bologna 40 Open:Active - - - - 260 257 3 0
Sora 40 Open:Active - - - - 261 258 3 0
Ferrara 40 Open:Active - - - - 258 255 3 0
Napoli 40 Open:Active - - - - 259 256 3 0
Livorno 40 Open:Active - - - - 258 258 0 0
Palermo 40 Open:Active - - - - 256 256 0 0
Venezia 4 Open:Active - - - - 255 255 0 0Initially, queues Livorno, Palermo, and Venezia in poolB are not assigned any slots because the first 7 higher priority queues have used all 21 slots available for allocation.
As jobs run and each queue accumulates used slots, LSF favors queues that have not run jobs yet. As jobs finish in the first 7 queues of poolB, slots are redistributed to the other queues that originally had no jobs (queues Livorno, Palermo, and Venezia). The total slot count remains 21 in all queues in poolB.
bqueues
QUEUE_NAME PRIO STATUS MAX JL/U JL/P JL/H NJOBS PEND RUN SUSP
Roma 50 Open:Active - - - - 15 6 9 0
Verona 48 Open:Active - - - - 25 18 7 0
Genova 47 Open:Active - - - - 460 455 5 0
Pisa 44 Open:Active - - - - 263 261 2 0
Milano 43 Open:Active - - - - 261 259 2 0
Parma 42 Open:Active - - - - 259 257 2 0
Bologna 40 Open:Active - - - - 259 257 2 0
Sora 40 Open:Active - - - - 260 258 2 0
Ferrara 40 Open:Active - - - - 257 255 2 0
Napoli 40 Open:Active - - - - 258 256 2 0
Livorno 40 Open:Active - - - - 258 256 2 0
Palermo 40 Open:Active - - - - 256 253 3 0
Venezia 4 Open:Active - - - - 255 253 2 0The following figure illustrates the round-robin distribution of slot allocations between queues Livorno and Palermo:
How LSF rebalances slot usage
In the following examples, job runtime is not equal, but varies randomly over time.
- 3 queues in one pool with 50%, 30%, 20% shares
A pool configures 3 queues:
queue1 50% with short-running jobs
queue2 20% with short-running jobs
queue3 30% with longer running jobs

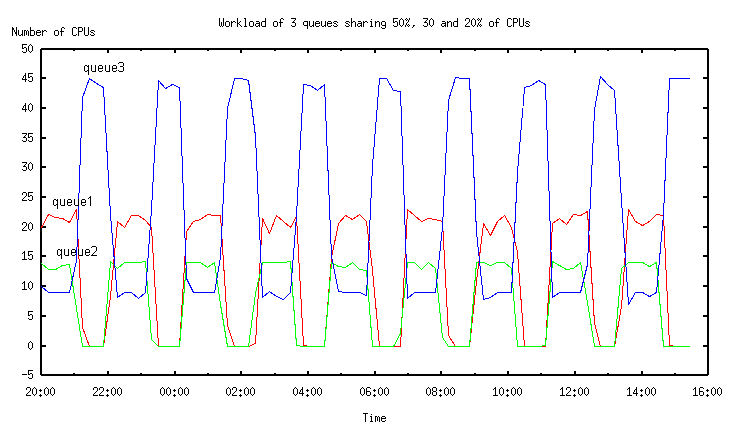

As queue1 and queue2 finish their jobs, the number of jobs in queue3 expands, and as queue1 and queue2 get more work, LSF rebalances the usage:
- 10 queues sharing 10% each of 50 slots
In this example, queue1 (the curve with the highest peaks) has the longer running jobs and so has less accumulated slots in use over time. LSF accordingly rebalances the load when all queues compete for jobs to maintain a configured 10% usage share.
